UK STOCK - Rilecart PB735 Wire Punch Bind for Calendars and Books

AVAILABLE NOW FROM UK RILECART AGENT

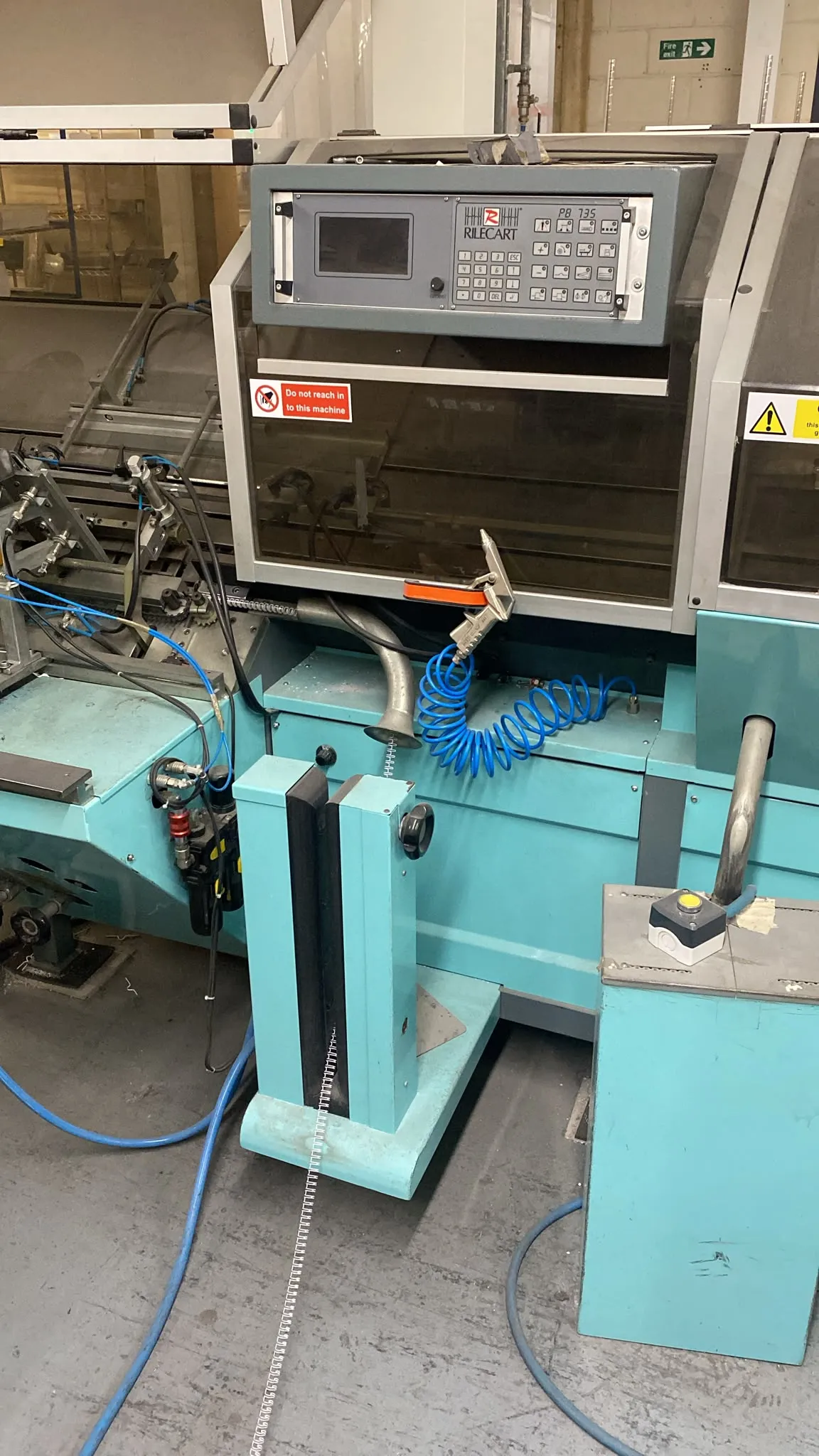

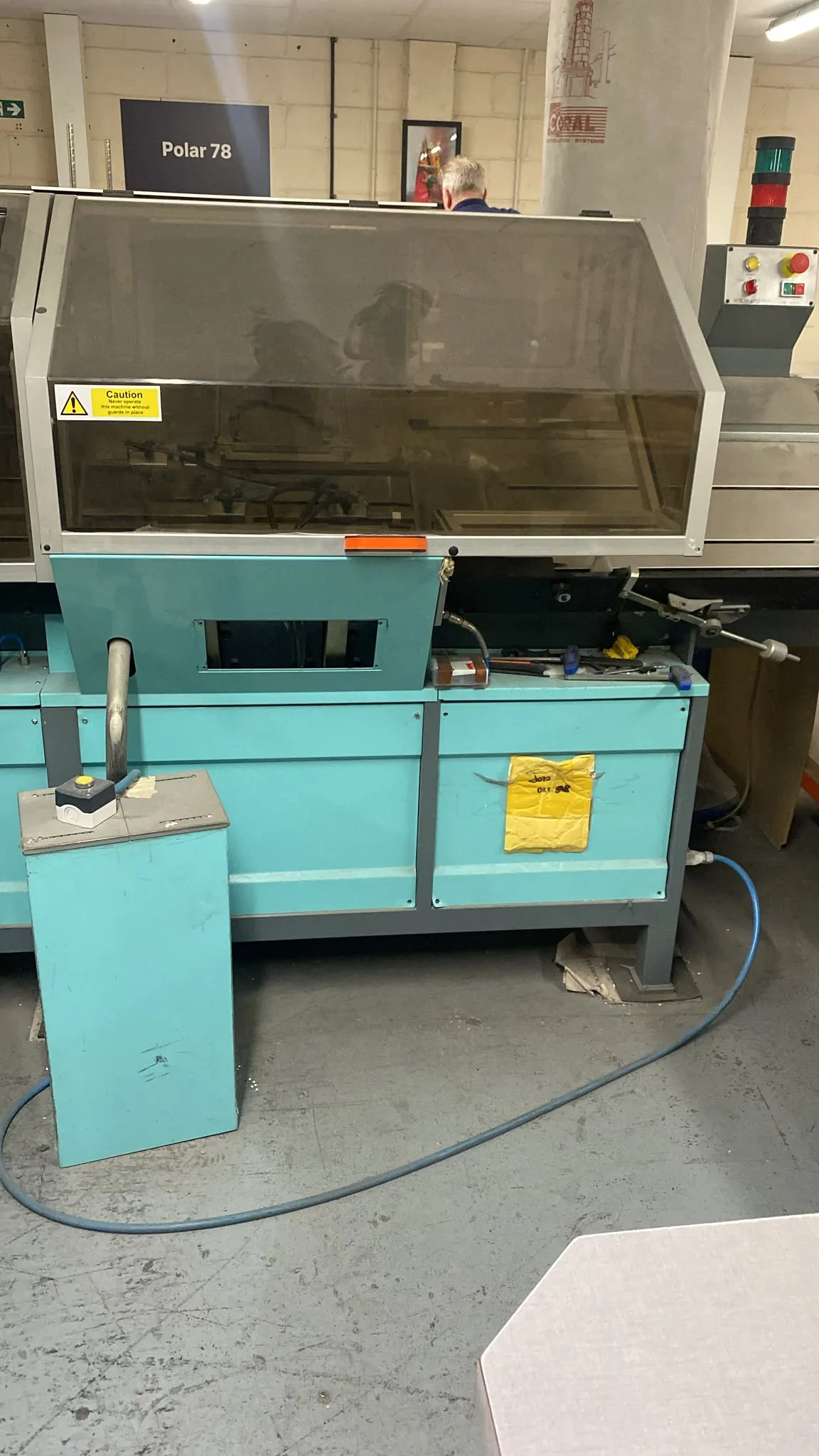

Rilecart PB735HD Automatic Punch Binding machine for wall calendars, desk calendars and books up to thickness of 11mm.

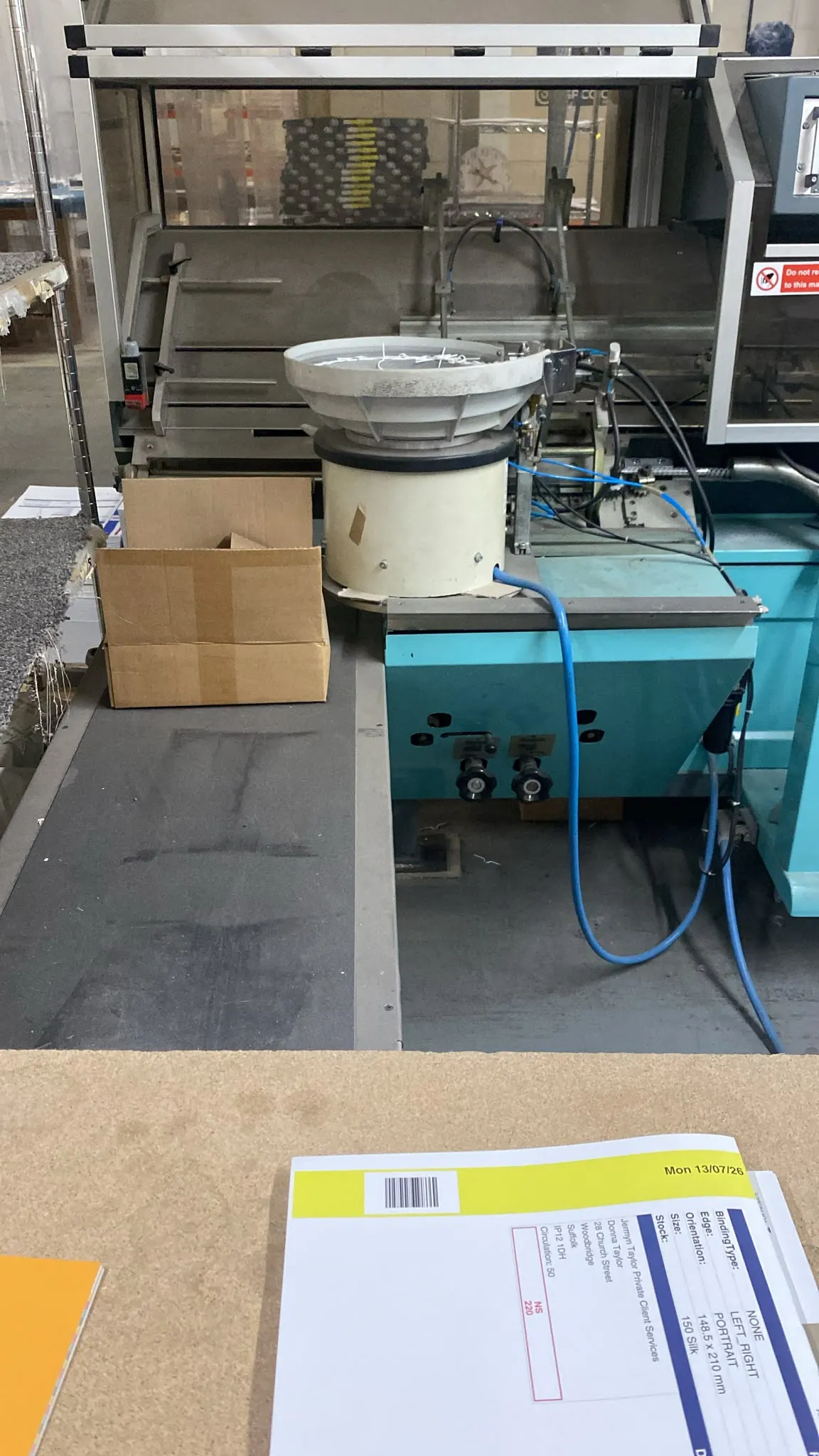

We have purchased this machine from our customer and is in our UK stock. Supplied with 3:1 punch tools (calendar thumb cut and full set of closing tools). Calendar Hanger Feeder and punch waste extractor.

As Rilecart’s dedicated UK partner for new machines, spare parts and service we have taken care of this machine since 2020 and it has been serviced it annually.

Videos available and machine can offered serviced, installed and operators trained. Worldwide Export available also.

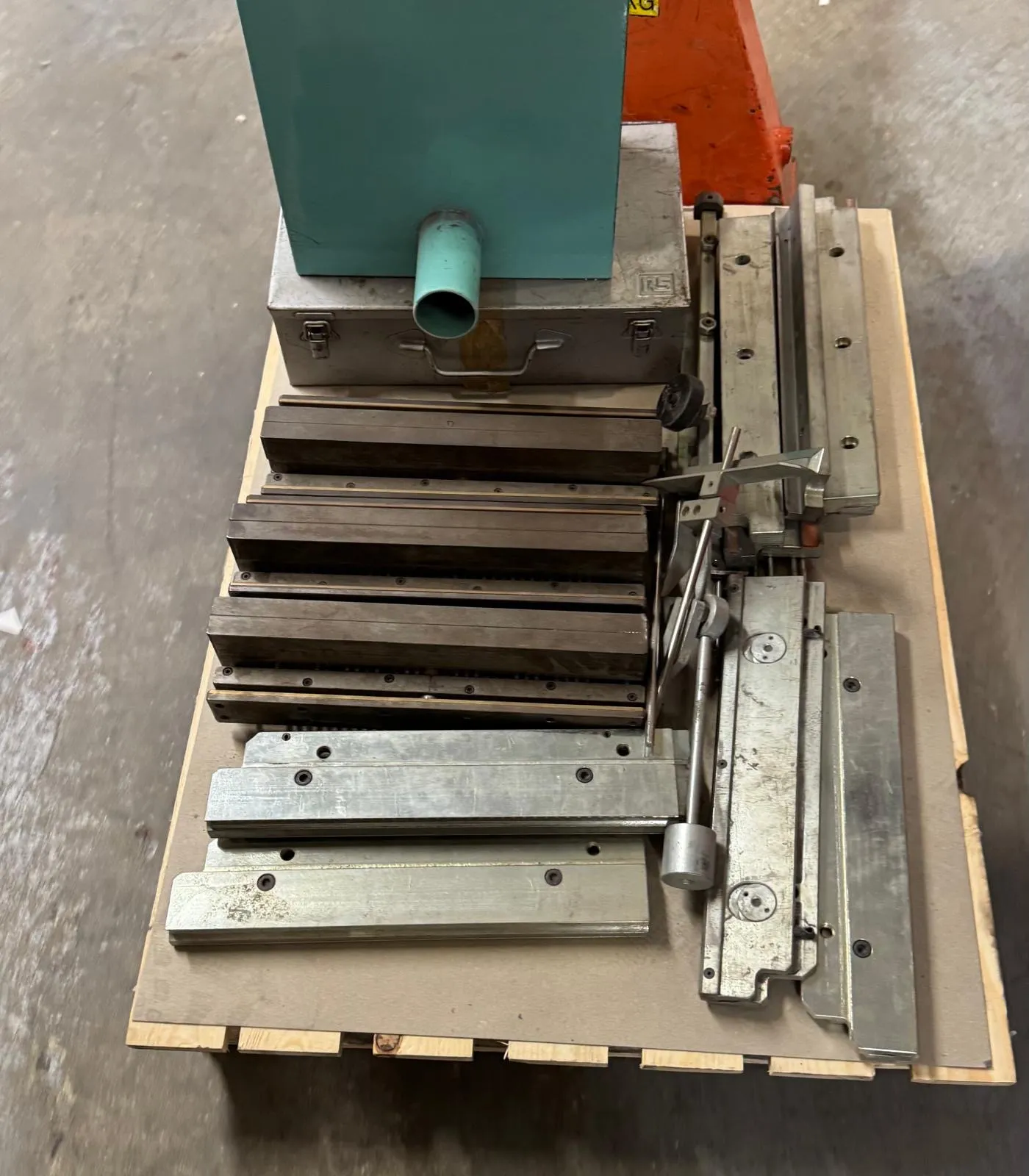

Supplied with 3:1 straight punch tool and 3:1 calendar punch tools

Closing tools for: 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 9/16”

Collated Calendars and books are placed on the conveyor and depending on the thickness of the product the machine can be used in three ways:

• Thickness less than 4 mm.: the machine in this case works in line

without anything else to do, simply have to pick up the product bound

on the conveyor.

• Thickness from 4 mm. to 8 mm.: it is necessary to use the separating

blade and split the product in two booklets that will

be punched separately by the double-action punching tool.

• Thickness from 8 mm. to 11 mm.: more over the maximum punching

limit of the machine. It is necessary to split the book

in two parts and than it will be automatically reassembled and bound.

• Uses wires on spools.

• Maximum binding size:

for products up to 4 mm. thickness: 350 x 500 mm.

for products over 4 mm. thickness: 350 x 300 mm.

• Minimum binding size: 100 x 100 mm.

• Maximum punching thickness per stoke: 8 mm.

(4 + 4 mm. depending on pitch, materials and width of the product).

• Standard binding diameters: 1/4”

(on request 5/16”, 3/8”, 7/16”, 1/2” and 9/16”).

• Standard pitch 3:1” (on request 4:1” or 2:1”).

• Speed variable 500 to 2300 pieces/hour depending on size,

thickness and quality of materials.

• Can be programmed for continuous binding, two pieces with

hanger or “skip-binding”.
